Projekt
- Git projekt ESP32-Plane-Radar
- Diskuze https://makerworld.com/cs/models/2872376-esp32-plane-radar-live-ads-b-on-a-round-display#profileId-3207083

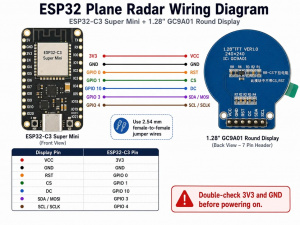

Zapojení
| Display | Display | Délka drátku |
|---|---|---|
| VCC | 3V3 | ~11 mm |
| GND | GND | ~11 mm |
| RST | GPIO 0 | ~11 mm |
| CS | GPIO 1 | ~11 mm |
| DC | GPIO 10 | ~25 mm |
| SDA (MOSI) | GPIO 3 | ~11 mm |
| SCL (SCLK) | GPIO 4 | ~11 mm |
Flash
Flash the firmware
- Download the release .bin from GitHub Releases.
- Put the board in download mode: unplug USB, hold BOOT, plug USB in, wait 2 seconds, release BOOT. If that fails, hold BOOT, tap RESET, release BOOT.
- Open https://web.esphome.io/ in Chrome or Edge.
- Choose Install (you do not need to set up a new ESPHome device).
- Select your serial port and the downloaded .bin.
- When it finishes, unplug, wait a few seconds, plug back in without holding BOOT.
Nastaveni
WiFi setup
Connect to PlaneRadar-Setup, then open http://plane-radar.local or http://192.168.4.1. Enter home WiFi, password, and your latitude and longitude. Save and wait for reboot.
The ESP32-C3 only works on 2.4 GHz WiFi. It does not work on a 5 GHz only network.
